KATT GmbH - Your Oilfield Equipment Partner
KATT GmbH is a leading global oilfield products company, serving the completion, production, well services and drilling sectors of the oil, gas and geothermal industry. Our products include engineered well services equipment as well as components, spare parts, and consumables.
KATT GmbH is headquartered in Celle, Germany with manufacturing, refurbishment, after-sales and distribution facilities in various countries.
Since 1989 we are providing Oilfield Equipment to more than 50 countries all over the world.
GOES GmbH, located in Wesendorf, Germany is a subdivision of KATT GmbH, currently the largest European Manufacturer for Oilfield Equipment. GOES GmbH designs and manufactures a full range of well stimulation, drilling, cementing and workover equipment, a full range of supporting products for the oil and gas industry. Utilizing the most technologically advanced components, GOES GmbH develops products that serve the specific requirements of our clients. Check out our latest built equipment!
We are supplying the European and Russian market with SPM Oil & Gas Iron, Pumps and spares from our stock in Celle, Germany, being an official Distributor.
For Coiled Tubing Units we are offering Injectors and spare parts from the Canadian manufacturer, Coil Solutions.

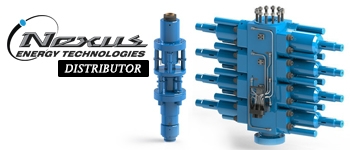

We are supplying European and CIS – countries with Power Control Equipment made by Nexus Energy Technologies, KATT GmbH being an official distributor.

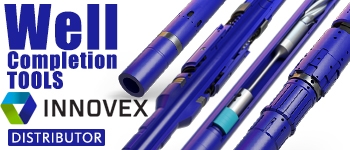

Our downhole specialists recommend you best Well Completion Tools in the Industry. Check out our offer for downhole tools.

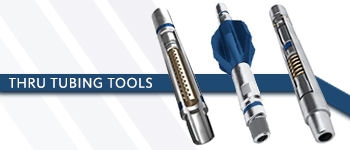

Ask our specialists for a quote for the best of our Thru Tubing Tools. There is a wide variety of tools that can be provided.

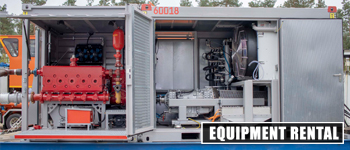

We are offering new and used equipment and components which are immediately available. Please check this page regulary.
Slickline Trailer - Delivered!
Our Wireline team from Celle finished the second Diesel- electric driven Slickline unit for OMV Petrom. The unit was tested together with the OMV Slickline and Wireline Team from Gänserndorf and they were very impressed by the results!
See on YouTube
WIRELINE LOGGING UNIT
The purpose of the unit will be wireline service and geological measurements with multi conductor cable for high definition down hole measurements.
The unit is designed for cable jobs up to 17/32 inch cable and is driven by a closed loop hydraulic drive via the truck engine power take off.
Wireline Logging Unit details:
7.2M Wireline Logging Truck for DMT-Group in Germany. The first of two trucks is deployed to Bremen for the installation of the surface logging system and for commissioning of truck and tools.
Single drum Wireline Logging winch
High performance closed loop hydraulic drive
Straight line counterhead

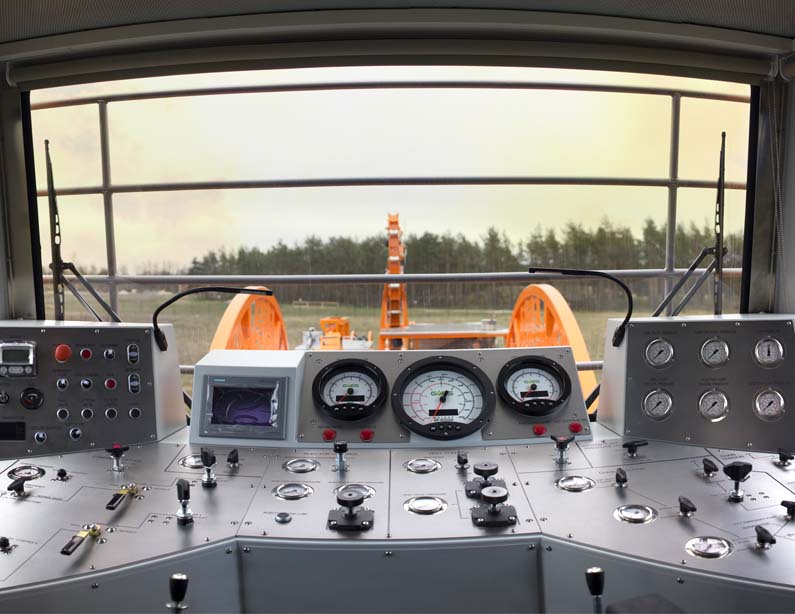

Digital winch operator panel
Constant speed
Auto spooling
19” computer rack for surface logging equipment
Logging tool racks
12 kVA integrated hydraulic driven generator
Air Condition
Diesel heater
Rig energy supply connection
Chassis: Heavy duty Mercedes Arocs 3342 6×6 (26 tons mgw, 420 hp, all-wheel drive, single sand and mud tires)
OFFSHORE WIRELINE UNIT
Features of the Offshore Wireline Unit:
8,5 ton offshore container frame
Dual drum Slickline / Wireline winch
High performance closed loop hydraulic drive
20” three sheave counter head
Digital ex-proof winch operator panel
Digital ex-proof back up depth panel
BOP / Wireline Valve control panel with hydraulic accumulators
Caterpillar C4.4 Diesel engine with 80 hp / 59 kW
Pyroban hazardous area engine modification (exhaust gas cooler with suitable engine water cooler, flame traps, air inlet shut down valve, over-speed shut down, low oil pressure shut down, cooling water temperature shut down, exhaust gas temperature shut down, anti-static belts, anti-static fan, etc.)
Ex-proof air starter system
Ex proof electric system
Insulated engine and operator section
Rig energy supply connection
Offshore Wireline Unit Certifications :
CE marking / Declaration of conformity ATEX 2014/34/EU directive (Zone 2) and 2006/42/EC machinery directive
DNVGL-ST-E271 offshore container certificate issued by Lloyd’s Register
WIRELINE UNIT
Wireline Unit
Details of the unit are:
Single drum Wireline winch
High performance closed loop hydraulic drive
Straight line counterhead
Digital winch operator panel
Surface logging equipment 19” computer rack
Center tool rack for
Grease injection pump
Stuffing box pump
12 kVA integrated hydraulic driven generator
Air Condition
Rig energy supply connection
Chassis: MAN TGL 12.250 (12 tons mgw, 250 hp)
The final acceptance test was performed at one test well near Celle, in Germany.
The unit is designed for cable jobs up to 1/4 in cable and is driven by a closed loop hydraulic drive via the truck engine power take off.

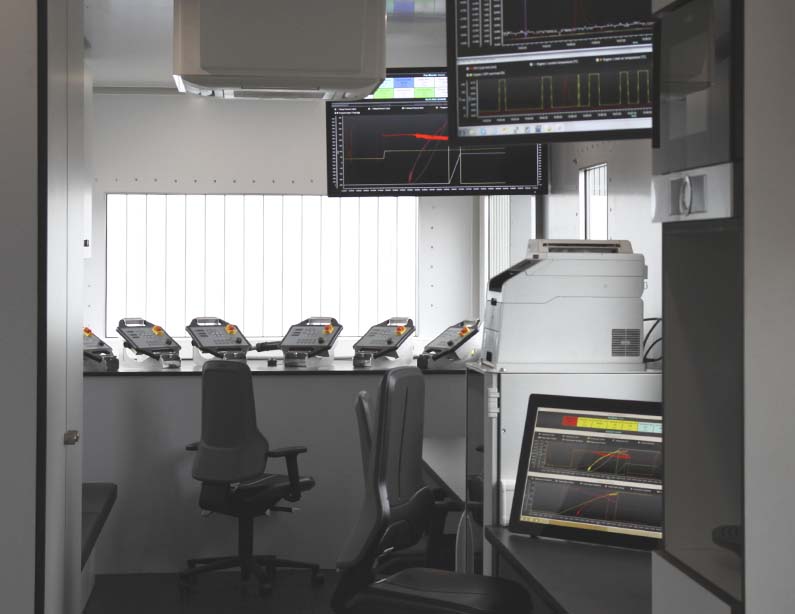

Our Manufacturing Center – GOES GmbH- delivered another two Twin Pump Trailers to our valued customer NESR in KSA. There units are having integrated the GOES DMS Data Acquisition System which records real-time values from operations and creates easily job reports.
See also on YouTube
